Music Snippet Classification音乐片段分类

Ensemble of ResNet34 models for classifying music audio snippets by singer gender基于 ResNet34 集成模型的音乐片段歌者性别分类

项目概览

本项目实现了一个深度学习模型集成系统，将 3 秒长的音频片段分类为基于歌者性别的 4 个类别，最终准确率达到 80.42%。流水线结合了人声分离、自定义的梅尔频率特征提取与集成学习技术。

课程： CSCI-SHU 360 机器学习

所属机构： 上海纽约大学

最终准确率： 80.42%

代码仓库： GitHub - Audio-Classification

报告： Final Report (PDF)

问题描述

任务挑战是基于歌者性别将短音乐片段（3 秒）分类为 4 个类别。该任务需要在以下条件下区分人声特征：

  • 背景伴奏对人声特征的遮蔽
  • 时间上下文有限（每个样本仅 3 秒）
  • 各类别间人声特征高度相似
  • 需要从原始音频中构建鲁棒的特征表示

方法

1. 预处理流水线

人声分离

  • 利用 Spleeter 从背景音乐中分离出人声轨道
  • 准确率提升约 5%
  • 让模型聚焦于歌者特征而非伴奏

特征提取

实现自定义的梅尔频率滤波器组特征提取：

# 配置
采样率: 16kHz
片段长度: 3 秒
预加重滤波器: α = 0.97
帧长: 25ms (400 个采样点)
帧移: 10ms (160 个采样点)
窗函数: Hamming
FFT 大小: 1024
梅尔滤波器组: 40 个滤波器 (0-8000 Hz)
输出形状: 每个样本 (299, 40)

相比使用现成的 MFCC 函数，我从零实现了梅尔频率滤波器组计算，从而带来：

  • 对音频表示的精细控制
  • 针对 3 秒片段的自定义优化
  • 对特征提取过程更深入的理解

特征保存为独立的 .npz 文件，以便训练时高效加载。

梅尔滤波器组权重计算与应用过程

2. 模型架构

基础模型：ResNet34

针对音频分类调整的 ResNet34 架构

架构修改：

  • 修改输入层以接受单通道频谱图（299×40）
  • 在最终分类层之前加入 dropout 层（p=0.2）
  • 4 类输出层
  • 从零训练（不使用预训练权重）

集成方法

由 20 个独立 ResNet34 模型组成的集成，预测结果取平均
  • 20 个独立的 ResNet34 模型
  • 每个模型使用相同的数据但不同的打乱顺序进行训练
  • 对所有模型的预测结果取平均
  • 集成方法相比单模型准确率提升 2-3%

3. 训练配置

优化器与损失函数：

  • 优化器：AdamW（lr=3e-4，weight_decay=1e-5）
  • 损失函数：CrossEntropyLoss
  • 学习率调度器：CosineAnnealingWarmRestarts
带热重启的余弦退火学习率调度

训练细节：

  • 批大小：32
  • 训练轮数：10-20
  • 训练/验证集划分：70/30（random_state=8）
  • 平台：Kaggle（GPU 加速）

高级技术：

  • Dropout（rate=0.2）防止过拟合
  • 带热重启的余弦退火学习率调度
  • 20 模型集成以获得鲁棒预测
  • 探索 mixup 数据增强（实验性）

数据集

  • 训练集： 11,886 个音频样本（每个 3 秒）
  • 测试集： 2,447 个音频样本
  • 类别： 4 类（基于性别的分类）
  • 格式： MP3 → 人声分离 → 梅尔滤波器组 → NPZ

结果

模型 准确率
单层 CNN（3 个卷积层） ~65%
单个 ResNet34 ~74%
ResNet34 集成（4-5 个模型） ~77-78%
ResNet34 集成（20 个模型） 80.42%

20 个模型的集成方法表现最佳。主要提升来自：

  1. 人声分离预处理：约 5% 提升
  2. 自定义梅尔频率特征：比标准 MFCC 提供更好的表示
  3. 集成学习：相比单模型提升 2-3%
  4. 合理的正则化与学习率调度

技术亮点

  1. 自定义梅尔滤波器组： 手工实现梅尔频率特征提取，而非使用现成的 MFCC 函数，提供对音频表示的精细控制以及对信号处理流水线的更深入理解。

  2. 人声分离： 基于 Spleeter 的人声分离让模型聚焦于歌者特征而非背景伴奏，显著提升分类准确率。

  3. 大规模集成： 训练 20 个独立模型并对预测取平均显著提升鲁棒性与泛化能力，代价是计算开销。

  4. 改造的 ResNet 架构： 通过将频谱图视为单通道图像，成功将计算机视觉架构（ResNet34）应用于音频分类。

挑战与经验

挑战：

  • 由于计算资源限制，超参数探索有限
  • 训练受 Kaggle 平台限制（随机断连）
  • 在集成规模与计算成本之间需要权衡
  • 数据增强实验受时间所限

主要收获：

  • 预处理（人声分离）对模型性能影响巨大
  • 集成方法带来稳定提升，但存在边际递减
  • 自定义特征提取带来更好的理解与控制
  • 合理的学习率调度对收敛至关重要

技术栈与工具

机器学习与深度学习：

  • ResNet34 架构与卷积神经网络
  • 集成学习技术
  • 迁移学习概念（将视觉模型适配于音频）
  • 正则化技术（dropout、weight decay）
  • 学习率调度（余弦退火）

音频处理：

  • 梅尔频率滤波器组实现
  • STFT（短时傅里叶变换）
  • 音频特征提取（MFCC、频谱图）
  • 使用 Spleeter 进行人声分离

开发与工具：

  • PyTorch 深度学习框架
  • Librosa 音频处理库
  • NumPy 数值计算
  • Kaggle 平台进行 GPU 训练
  • Python 科学计算生态

未来方向

  • 超参数调优： 系统地探索学习率、训练轮数与模型架构
  • 更先进的架构： 探索基于 Transformer 的模型或专为音频设计的架构（如 WaveNet）
  • 数据增强： 进一步实验 mixup、SpecAugment 与时间拉伸
  • 模型效率： 研究知识蒸馏，将集成压缩为单模型
  • 实时推理： 针对部署进行优化以降低延迟

参考文献

Overview

This project implements an ensemble of deep learning models to classify 3-second audio snippets into 4 gender-based categories, achieving 80.42% accuracy. The pipeline combines vocal separation, custom mel-frequency feature extraction, and ensemble learning techniques.

Course: CSCI-SHU 360 Machine Learning

Institution: New York University Shanghai

Final Accuracy: 80.42%

Repository: GitHub - Audio-Classification

Report: Final Report (PDF)

Problem Statement

The challenge was to classify short music snippets (3 seconds) into 4 categories based on singer gender. This task required distinguishing vocal characteristics while handling:

  • Background instrumentation that obscures vocal features
  • Limited temporal context (only 3 seconds per sample)
  • High inter-class similarity in vocal characteristics
  • Need for robust feature representation from raw audio

Methodology

1. Preprocessing Pipeline

Vocal Separation

  • Utilized Spleeter to isolate vocal tracks from background music
  • Achieved approximately 5% accuracy improvement
  • Focused model attention on singer characteristics rather than instrumentation

Feature Extraction

Implemented custom mel-frequency filter bank feature extraction:

# Configuration
Sample rate: 16kHz
Segment length: 3 seconds
Pre-emphasis filter: α = 0.97
Frame size: 25ms (400 samples)
Frame stride: 10ms (160 samples)
Window: Hamming
FFT size: 1024
Mel filter banks: 40 banks (0-8000 Hz)
Output shape: (299, 40) per sample

Rather than using pre-built MFCC functions, I implemented the mel-frequency filter bank computation from scratch, providing:

  • Fine-grained control over audio representation
  • Custom optimization for 3-second snippets
  • Better understanding of the feature extraction process

Features are saved as individual .npz files for efficient loading during training.

Mel filter bank weight computation and application process

2. Model Architecture

Base Model: ResNet34

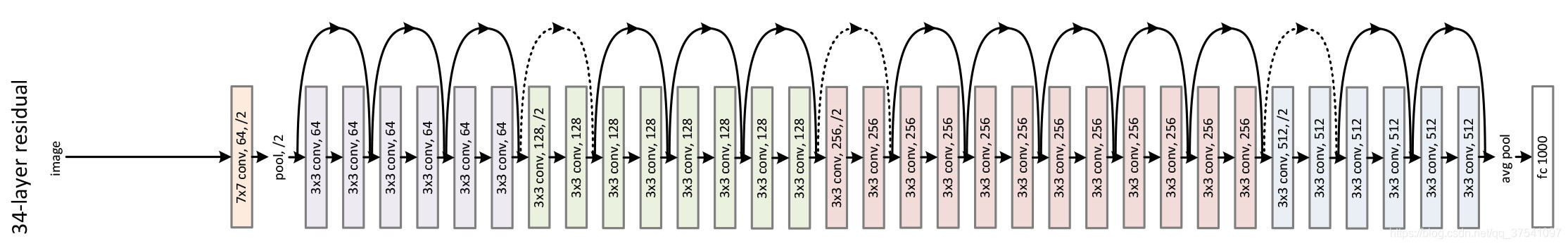

ResNet34 architecture adapted for audio classification

Architecture modifications:

  • Modified input layer to accept 1-channel spectrograms (299×40)
  • Added dropout layer (p=0.2) before final classification
  • 4-class output layer
  • Trained from scratch (no pre-trained weights)

Ensemble Method

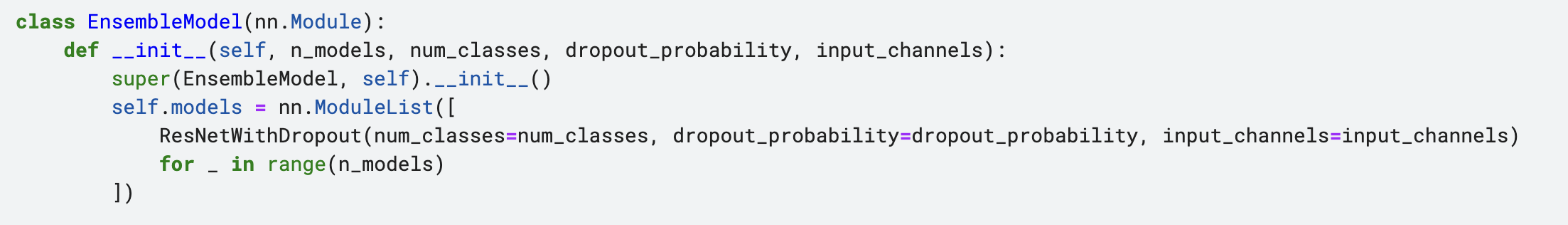

Ensemble of 20 independent ResNet34 models with averaged predictions
  • 20 independent ResNet34 models
  • Each model trained on the same data with different shuffling
  • Predictions averaged across all models
  • Ensemble improved accuracy by 2-3% over single models

3. Training Configuration

Optimizer & Loss:

  • Optimizer: AdamW (lr=3e-4, weight_decay=1e-5)
  • Loss Function: CrossEntropyLoss
  • Learning Rate Scheduler: CosineAnnealingWarmRestarts

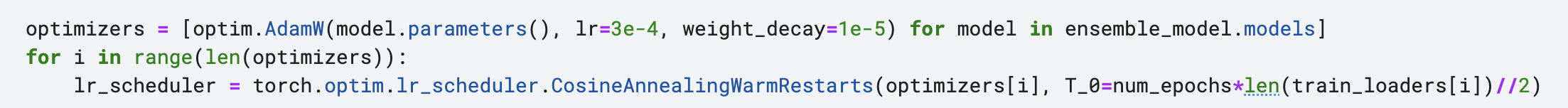

Cosine annealing with warm restarts learning rate schedule

Training Details:

  • Batch Size: 32
  • Epochs: 10-20
  • Train/Validation Split: 70/30 (random_state=8)
  • Platform: Kaggle (GPU acceleration)

Advanced Techniques:

  • Dropout (rate=0.2) to prevent overfitting
  • Cosine annealing with warm restarts for learning rate scheduling
  • 20-model ensemble for robust predictions
  • Explored mixup augmentation (experimental)

Dataset

  • Training Set: 11,886 audio samples (3 seconds each)
  • Test Set: 2,447 audio samples
  • Categories: 4 classes (gender-based classification)
  • Format: MP3 → Vocal separation → Mel filter banks → NPZ

Results

Model Accuracy
Single CNN (3 conv layers) ~65%
Single ResNet34 ~74%
ResNet34 Ensemble (4-5 models) ~77-78%
ResNet34 Ensemble (20 models) 80.42%

The ensemble approach with 20 models provided the best performance. Key improvements came from:

  1. Vocal separation preprocessing: ~5% improvement
  2. Custom mel-frequency features: Better representation than standard MFCCs
  3. Ensemble learning: 2-3% improvement over single models
  4. Proper regularization and learning rate scheduling

Technical Highlights

  1. Custom Mel Filter Banks: Hand-implemented mel-frequency feature extraction instead of using pre-built MFCC functions, providing fine-grained control over the audio representation and deeper understanding of the signal processing pipeline.

  2. Vocal Isolation: Spleeter-based vocal separation focuses the model on singer characteristics rather than background instrumentation, significantly improving classification accuracy.

  3. Large-Scale Ensemble: Training 20 independent models and averaging predictions significantly improves robustness and generalization, though at the cost of computational expense.

  4. Modified ResNet Architecture: Successfully adapted computer vision architecture (ResNet34) for audio classification by treating spectrograms as single-channel images.

Challenges & Lessons Learned

Challenges:

  • Limited hyperparameter exploration due to computational constraints
  • Training constrained by Kaggle platform limitations (random disconnections)
  • Balancing ensemble size with computational cost
  • Data augmentation experimentation limited by time constraints

Key Learnings:

  • Preprocessing (vocal separation) can have major impact on model performance
  • Ensemble methods provide consistent improvements with diminishing returns
  • Custom feature extraction provides better understanding and control
  • Proper learning rate scheduling is crucial for convergence

Technical Skills & Tools

Machine Learning & Deep Learning:

  • ResNet34 architecture and convolutional neural networks
  • Ensemble learning techniques
  • Transfer learning concepts (adapting vision models for audio)
  • Regularization techniques (dropout, weight decay)
  • Learning rate scheduling (cosine annealing)

Audio Processing:

  • Mel-frequency filter banks implementation
  • STFT (Short-Time Fourier Transform)
  • Audio feature extraction (MFCCs, spectrograms)
  • Vocal separation using Spleeter

Development & Tools:

  • PyTorch deep learning framework
  • Librosa for audio processing
  • NumPy for numerical computing
  • Kaggle platform for GPU training
  • Python scientific computing stack

Future Directions

  • Hyperparameter Tuning: Systematic exploration of learning rates, epochs, and model architectures
  • Advanced Architectures: Explore transformer-based models or audio-specific architectures like WaveNet
  • Data Augmentation: Further experimentation with mixup, SpecAugment, and time-stretching
  • Model Efficiency: Investigate knowledge distillation to compress the ensemble into a single model
  • Real-time Inference: Optimize for deployment with reduced latency
