Collaborative Piano协作钢琴

Overview

A sophisticated networked piano application built entirely in Java that enables two users to play piano and chat together in real-time, with full recording and playback capabilities. This project demonstrates advanced software engineering principles by integrating four core computer science topics: thread concurrency with synchronization, file I/O, socket networking, and GUI graphics programming.

Course: Java and Web Design (Spring 2025)

Institution: NYU Tandon School of Engineering

Advisor: Prof. Daniel Katz-Braunschweig

Repository: GitHub - Cooperating-Piano

Report: Project Report (PDF)

User Guide: User Guide (PDF)

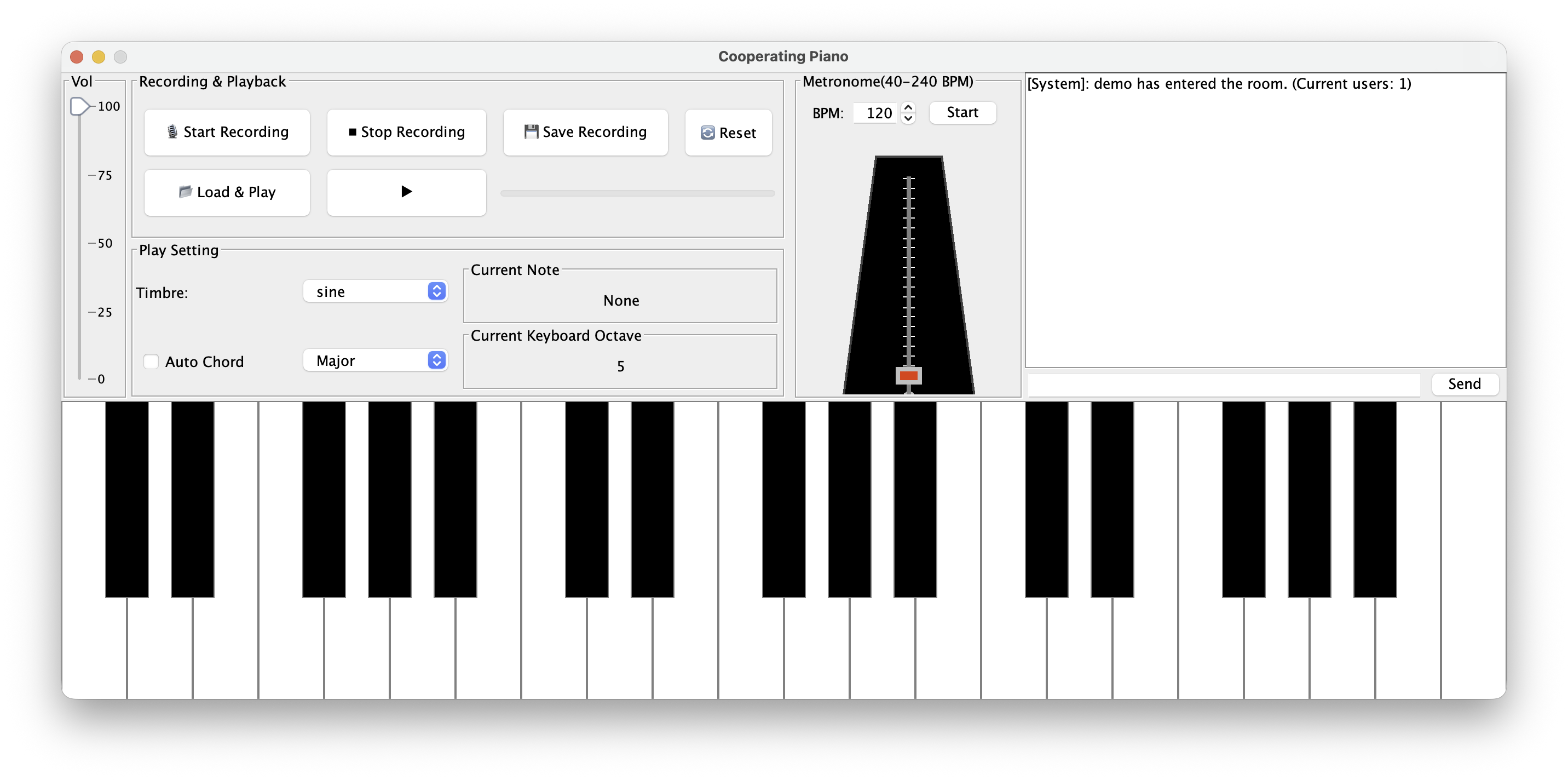

Interface

Key Features

🎹 Real-Time Collaborative Performance

• Multi-user piano playing over TCP sockets
• Synchronized audio playback across connected clients
• Built-in chat functionality for communication between players
• Multiple timbre options (sine, square, triangle, sawtooth waves + real piano samples)

🎨 Advanced GUI with Animated Metronome

• Full-featured piano keyboard interface using Java Swing
• Custom-drawn metronome with Graphics2D and AffineTransform
• Smooth pendulum animation using rotation transforms
• Intuitive controls for tempo, timbre selection, and recording

🎵 Audio System

• Thread-based audio playback using SourceDataLine
• Real piano samples (.wav) loaded from open-source TEDAgame’s Piano Pack
• Synthesized electronic timbres with mathematical waveform generation
• Chord support with configurable pitch mappings

💾 Recording & Playback

• Session recording with accurate timestamp preservation
• File-based storage format: note,startTime,endTime,timbre
• Full playback system that reconstructs recorded performances
• Pause/resume functionality with timing synchronization

Technical Implementation

Architecture Components

1. Graphics (Java Swing/AWT)

• Vector-based drawing using Graphics2D primitives
• AffineTransform for metronome pendulum rotation and animation
• Custom painting methods for visual feedback on key presses
• Responsive layout with multiple control panels

2. Networking (TCP Sockets)

• Client-Server Architecture:
  • Server: ServerSocket on port 5190, multi-threaded client handling
  • Client: Socket-based connection with JSON message encoding
• Communication Protocol:
  • Message types: “MUSIC” (note events) and “CHAT” (text messages)
  • Server broadcasts all events to connected clients for synchronization
  • Framed messages using DataInputStream/DataOutputStream

3. Thread Concurrency

• Multi-threaded Audio Playback:
  • Each note spawns a new thread via ExecutorService
  • Independent audio streams for simultaneous notes
• Network I/O Threads:
  • Dedicated threads for reading/writing socket data
  • Thread-safe message queuing
• Synchronization Structures:
  • ConcurrentHashMap for active note tracking
  • ConcurrentSkipListSet for shared state management
  • Timestamp tracking for pause/resume functionality

4. File I/O

• Recording Management:
  • BufferedWriter over FileWriter for efficient recording
  • Event logging with note, timbre, and timestamp data
  • BufferedReader for file parsing during playback
• Audio Sample Loading:
  • Preloaded .wav files cached in memory for low-latency playback
  • Resource management for multiple audio files

Technical Challenges Solved

1. Real-Time Synchronization

Implemented a robust client-server protocol to ensure:

• Minimal latency in note event propagation
• Synchronized playback across multiple clients
• Chat messages delivered without blocking audio

2. Concurrent Audio Management

• Managed multiple simultaneous audio streams without conflicts
• Thread pool optimization for playback threads
• Clean resource cleanup to prevent audio line exhaustion

3. Timing Accuracy

• Precise timestamp recording for faithful playback
• Pause/resume logic that maintains timing consistency
• Metronome synchronization with audio events

4. Graphics Performance

• Efficient redrawing for metronome animation
• Smooth pendulum rotation using affine transforms
• Visual feedback for key presses without lag

Skills Demonstrated

Programming & Software Engineering:

• Advanced Java programming (Swing, AWT, I/O, Sockets)
• Multi-threaded application design
• Network protocol design and implementation
• Object-oriented architecture and modular design

Technical Concepts:

• TCP socket programming
• Thread synchronization and concurrency control
• Audio processing with Java Sound API
• Graphics programming with 2D transforms
• File I/O and data serialization

Tools & Technologies:

• Java Swing/AWT
• ExecutorService for thread management
• ConcurrentHashMap and thread-safe collections
• Graphics2D and AffineTransform
• BufferedReader/Writer for file operations

Future Enhancements

The project architecture supports several potential extensions:

1. Database Integration: JDBC support for storing user sessions, preferences, and timbre presets
2. Multi-Room Support: Scalable server architecture for multiple concurrent sessions
3. User Authentication: Login system with user profiles and session history
4. Extensible Audio: Plugin system for importing custom timbres and chord maps
5. MIDI Support: Import/export MIDI files for compatibility with other music software

Impact & Learning Outcomes

This project provided deep hands-on experience with:

• Building real-time networked applications from scratch
• Managing complex concurrent systems safely and efficiently
• Integrating multiple subsystems (GUI, networking, audio, file I/O) into a cohesive application
• Designing modular, maintainable code architecture
• Debugging multi-threaded race conditions and synchronization issues

The collaborative piano demonstrates how fundamental CS concepts (threads, sockets, I/O, graphics) combine to create an interactive, real-time multimedia application.
